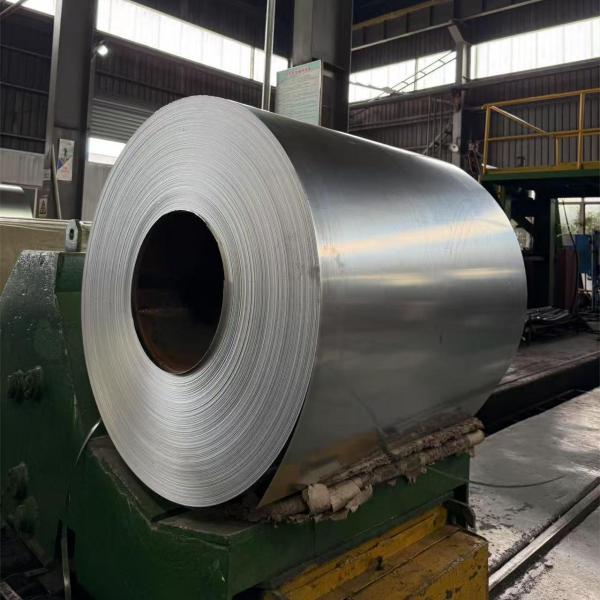

DX53D+Z Zero-Spangle Welding Galvanized Coil

  • 1
  • 2

Brand Name : HuiYi-GI

Model Number : DX53D+Z, SGCC, S350GD+Z, S550GD+Z

Certification : ASTM, EN, JIS, GB/T

Place of Origin : China

MOQ : 25MT

Price : Negotiation

Payment Terms : T/T,L/C,D/P

Supply Ability : 5000MT/Month

Delivery Time : 15-30 Days

Packaging Details : VCI kraft paper + 0.3mm PE film + Steel-strapped pallets with edge guards

Product Name : Galvanized Steel Coil

Material : High-Strength Steel Coil

Sheet Thickness : 0.12mm - 4.0mm (±0.02mm)

Sheet Width : 600mm - 1,500mm (±2mm)

Tensile Strength : 340-550 MPa

Surface Treatment : Chromated/Oiled

Salt Spray Resistance : 1,000hrs (ASTM B117)

Corrosion Warranty : 25-year anti-perforation

Contact Now

DX53D+Z Zero-Spangle Welding Galvanized Coil
Product Specifications
Attribute Value
Product Name Galvanized Steel Coil
Material High-Strength Steel Coil
Sheet Thickness 0.12mm - 4.0mm (±0.02mm)
Sheet Width 600mm - 1,500mm (±2mm)
Tensile Strength 340-550 MPa
Surface Treatment Chromated/Oiled
Salt Spray Resistance 1,000hrs (ASTM B117)
Corrosion Warranty 25-year anti-perforation

Product Description

Engineered for welding-intensive applications, our 0.12-4.0mm Customizable Galvanized Steel Coil delivers superior weldability and corrosion resistance. Featuring a zinc-iron alloy layer (ZF) with optimized microstructural bonding (10μm min.), this coil achieves seamless welding without spatter or porosity. The hot-dip process applies 30-275g/m² zinc coating (adjustable per project needs), backed by 1,000+ hours ASTM B117 salt spray resistance for harsh industrial environments. Certified to EN 10142 and JIS G3302, it ensures structural integrity in fabrication-critical sectors like automotive frames and pre-engineered buildings.

DX53D+Z Zero-Spangle Welding Galvanized Coil


Technical Parameters
Parameter Specification
Thickness Range 0.12-4.0mm (±0.02mm)
Width Range 600-1,500mm (±2mm)
Zinc Coating 30-275g/m² (customizable)
Tensile Strength 340-550 MPa (Grade-Dependent)
Spangle Type Zero/Minimal (ideal for painting)
Surface Treatment Chromated + Oiled (Anti-Fingerprint)
Welding Compatibility AWS D1.3, ISO 14315

DX53D+Z Zero-Spangle Welding Galvanized Coil


Applications
  • Structural Fabrication: Welded trusses, support beams, and crane girders requiring zero porosity joints (ISO 5817-B).
  • Automotive Chassis: Laser-welded components with ≤0.1mm heat-affected zone (HAZ) distortion.
  • Pre-Engineered Buildings: Bolt-free welded frames for warehouses, leveraging EN 1090-2 certification.
  • Industrial Piping: Seamless ERW (Electric Resistance Welded) pipes in chemical plants.

DX53D+Z Zero-Spangle Welding Galvanized Coil


Customization Options
  • Material Grades: DX53D+Z (deep drawing), S350GD+Z (structural), S550GD+Z (high-strength).
  • Zinc Coating: 30g/m² (indoor) to 275g/m² (coastal).
  • Edge Processing: Mill edge/trimmed edge with PVC protectors for weld alignment.
  • MOQ: 25 tons (standard), 5 tons for custom spangle/texture.


Packing and Shipping
  • Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
  • Global Logistics: FOB/CIF from Chinese ports; 15-day delivery for Asia, 30 days globally.

DX53D+Z Zero-Spangle Welding Galvanized Coil


FAQ
Why choose this coil for welding over standard GI?

The ZF alloy layer (FeZn₇/FeZn₁₃) reduces zinc vaporization at 450°C, preventing weld cracks.

Optimal coating thickness for weld durability?

60-120g/m² balances corrosion resistance and low spatter (per AWS D1.3 guidelines).

Maintenance requirements?

Self-passivating zinc layer reduces need for repainting; biennial inspections suffice.

Certifications for structural welding?

Complies with EN ISO 1461 (galvanizing) and EN 1090-2 (CE welding).

What is your working time?

Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.


Product Tags:

customizable galvanized steel coil



welding grade steel coil



galvanized steel coil 0.12-4.0mm


Quality DX53D+Z Zero-Spangle Welding Galvanized Coil for sale
