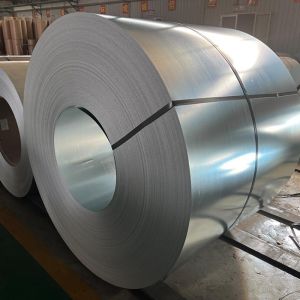

S450GD+AZ Galvalume Steel Coil 610mm for Construction Material

  • 1
  • 2
  • 3

Brand Name : Huiyi-GL

Model Number : SGLCC,G550

Certification : ISO9001

Place of Origin : China

MOQ : 25Tons

Price : Negotiation

Payment Terms : L/C,D/P,T/T

Supply Ability : 5000MT/Month

Delivery Time : 15-30 Days

Packaging Details : Exporting Packing with 3layers including the waterproof plastic film，Waterproof paper - plastic film-metal wrap.

Product name : GL steel coils

Alu-Zinc Coating : 55% alu, 43.5% zinc,1.5% Si

Zinc coating : 30-150g/㎡

Coil id : 508mm/610mm

Width : 600-1500mm

Shape : Plate, Coil

Payment term : T/T, L/C, D/P

Surface treatment : Oiled, Chromated, Anti fingerprints

Contact Now

S450GD+AZ Galvalume Steel Coil 610mm for Construction Material
Product Description

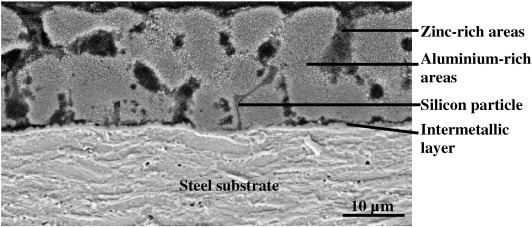

Engineered for superior structural performance, our S450GD+AZ Galvalume Steel Coils are high-strength substrates coated with a 55% aluminum-zinc-silicon alloy. Unlike standard Galvalume, this coil is defined by its S450GD grade, which provides a minimum yield strength of 450 MPa, making it exceptionally strong and load-bearing. Specifically designed for demanding construction frameworks, this product combines the durability of Galvalume with the rigidity of high-tensile steel, offering a robust, long-lasting solution for structural applications.
S450GD+AZ Galvalume Steel Coil 610mm for Construction Material
Specification
Type Galvalume Steel Coil
Thickness 0.12-2.0mm
Width 600mm-1500mm
Coating Type AZ30-AZ150
Standards ASTM A792, JIS G3322, EN 10147, AS 1397
Production process Cold base
Hardness Soft (normal)/ Hard/ Full hard
Steel Grade DX51D+AZ, DX52D+AZ, S450GD+AZ

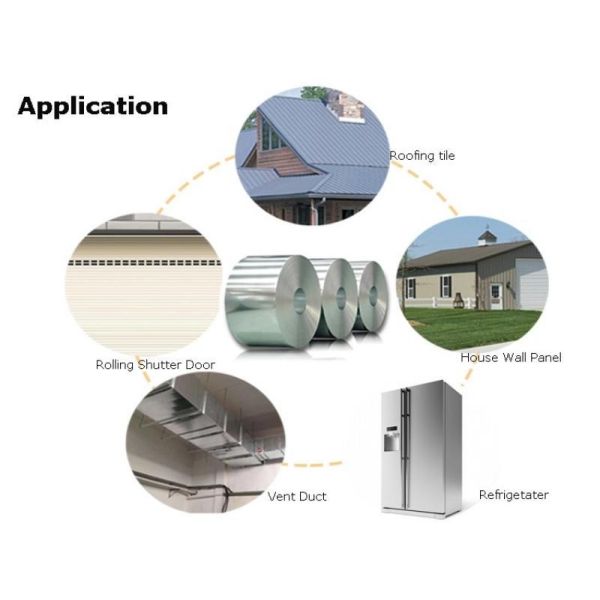

Applications

This high-strength S450GD+AZ Galvalume coil is specifically engineered for construction applications where load-bearing capacity and corrosion resistance are critical.


  • Structural Building Framing: Ideal for primary and secondary structural components like purlins, girts, and steel trusses in industrial warehouses and commercial buildings.


  • Heavy-Duty Support Systems: Used in the fabrication of load-bearing platforms, mezzanine floors, and walkways, where its high yield strength ensures safety and longevity.


  • External Cladding and Roofing Substrates: Serves as a durable base for insulated panels and standing seam roofs, providing a strong, rust-resistant foundation that withstands harsh weather.


  • Infrastructure and Guardrails: Perfect for highway sound barriers, security fencing panels, and other infrastructure projects requiring a combination of strength, durability, and minimal maintenance.
S450GD+AZ Galvalume Steel Coil 610mm for Construction Material

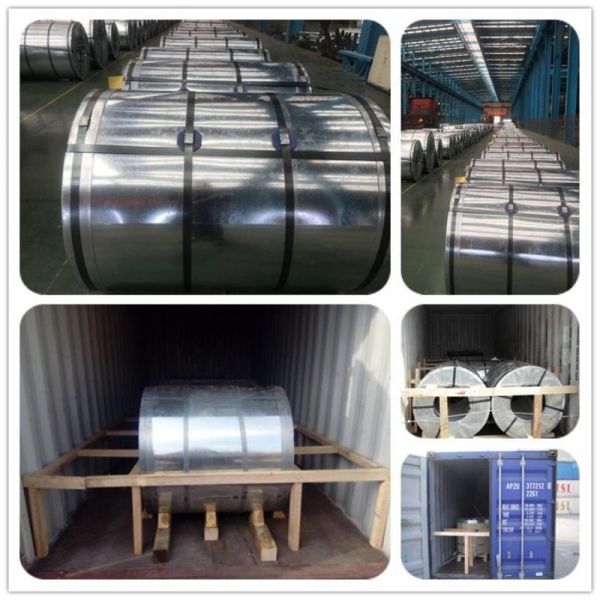

Packing and Shipping
To ensure the integrity of the high-strength edges and surface, each coil is protected with VCI anti-rust paper, reinforced waterproof PE film, and custom steel-edge protectors on wooden pallets (max 10 tons). We ship globally via FOB/CIF from main Chinese ports, with reliable delivery timelines.
S450GD+AZ Galvalume Steel Coil 610mm for Construction Material
FAQ
Q: What is the main advantage of S450GD+AZ over DX52D+AZ?
A: The key difference is strength. S450GD+AZ has a minimum yield strength of 450 MPa, making it a structural grade ideal for load-bearing components. DX52D is a commercial grade with higher formability but lower strength, suited for non-structural applications.

Q: How does the AZ30-AZ150 coating weight range benefit my construction project?
A: The AZ30-AZ150 coating range allows for precise cost-to-performance optimization. Lighter coatings (e.g., AZ30-AZ70) are ideal for interior structural members or less aggressive environments, offering excellent value. Heavier coatings (e.g., AZ100-AZ150) provide maximum longevity for exposed structural components, safeguarding your project against corrosion for decades.

Q: Is this coil suitable for direct exposure without painting?
A: Yes, the Galvalume coating provides excellent corrosion resistance on its own. However, the zero-spangle finish is also ideal if you plan to apply a paint system for additional aesthetics or specific environmental protection.
